E-testing circuit board.USB charge board with assembly.single-sided PCB for usb connector Single-sided PCB-9 manufacturer from China Shenzhen K-better circuit electrical Co.Ltd

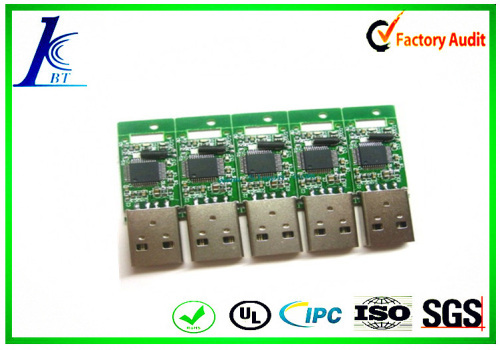

E-testing circuit board.USB charge board with assembly.single-sided PCB for usb connector

Price:	0.01~1.2 USD
Payment Terms:	T/T,WU;Paypal
Place of Origin:	Guangdong, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: Single-sided PCB-9

Production Capacity: 30000 square meters/month

Delivery Date: 3-7 days

Base Material: FR4.CEM-1.CEM-3

Board Thickness: 0.2-3.0mm

Min. Line Width: 0.15mm

Surface Finishing: immersion gold.HASL.HAL lea...

other service: pcb/pcba copy.board testing...

Means of Transport: Ocean,Land,Air,

Packing: vacuum packing

Brand Name: K-better

Copper Thickness: 0.5-3.0oz

Min. Hole Diameter: 0.25mm

Min. Line Spacing: 0.15mm

certification: ISO9000.CE,UL,RoHS

soldermask color: red.green.black.white.blue....

Prototype-quick delivery
Low power consumption with high intensity
Available in different sizes and colors
Qualified for CE and RoHS certificates

Warm welcome you desire or inquiries negotiations.

Contribute efforts to you with all sincerity is our commitment.

We are in hopes of your cooperation!

Our Service:

1. Turnkey Service:

Procurement agent component and related electronic products according to your BOM--component's list. Helping you the product with best price and best quality from biggest electrical market in China.

2. SMT, DIP processing

Giving us your sample, design or your idea file, we can hand in you want.

3. Testing&Assembly

Inform us your testing way, we also help you do the testing service, giving you 99% work well perfect product

Our Advantages:

*Our company was established in 1996, which is engaged in printing circuit board production. It has long history.

*We have our own factory and equipped with advanced circuit board production line. the digital control drilling machine, optical painting equipment, exposing machine, developing machine and so on.

It can produce a high-quality PCB production.

*Enjoying high reputation in this line.

*Effective management to make every member can do their best for the customer.

*There's no limit in Quantity.

Key Specifications/Special Features:

*Layers: 1 to 16

*Materials: FR-4, CEM-1, aluminum,

*Finish board thickness: 0.2 to 3.2mm

*External copper thickness: 35 to 210um

*Internal copper thickness: 17 to 140um

*Copper plating hole: 18 to 40um

*Trace width and line spacing: 0.075/0.1mm (3/4 mils)

*CNC hole diameter: 0.20mm (minimum)

*Punching hole diameter: 0.9mm (35 mils) (minimum)

*Panel size: 610 x 508mm (maximum)

*Hole position tolerance: 0.075mm

*Hole dimension tolerance: 0.075 (PTH) and 0.05mm (NPTH)

*Outline tolerance: 0.125 (CNS) and 0.15mm (punching)

*Warp and twist: 0.70%

*Solder mask bridge: 0.0635mm (minimum)

*Distance between lines to board bridge: 0.25 (minimum) (outline) and 0.40mm (v-cut)

*Impedance control tolerance: ±10%

*Test voltage: 10 to 300V

*Solder mask types: green, yellow, red, white, blue, matte green, matte black and more

*Surface finished: HASL, immersion gold, immersion silver, gold-plated, gold finger and OSP

Production Process:
E-testing circuit board.USB charge board with assembly.single-sided PCB for usb connector

Product Show:
E-testing circuit board.USB charge board with assembly.single-sided PCB for usb connector

Quick Leadtime:

Lead time for sample	2-3 days for single-sided board
	4-5 days for double-sided board
	6-7 days for multilayer board
	24-48 hours for urgent
Lead time for Opening Mould	3-5 days for normal mould
Lead time for Opening Mould	5-7 days for hard mould
Lead time for Mass production	5-7 days for single/double sided board
Lead time for Mass production	7-10 days for multilayer board
