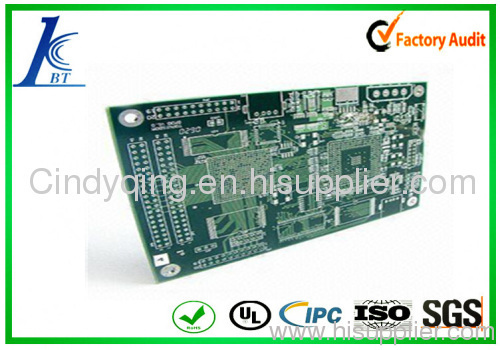

Ultra-high performance multilayer PCB board.professional pcb and pcba manufacturer. Multi-layer PCB-2 manufacturer from China Shenzhen K-better circuit electrical Co.Ltd

Product Detail

Model No.: Multi-layer PCB-2

Production Capacity: 30000 squaremeter/month

Delivery Date: 3-7 days

Brand Name: K-better

Copper Thickness: 0.5-3.0oz

Min. Hole Size: 0.25mm

Min. Line Spacing: 0.15mm

Other Service: PCB&PCBA copy, parts purcha...

Means of Transport: Air

Packing: vacuum pcaking

Number of Layers: 4-Layer

Base Material: CEM-1.CEM-3.FR4.AL

Board Thickness: 0.2-3.0mm

Min. Line Width: 0.15mm

Soldermask color: green, red, blue, yellow, b...

1.Used in Wireless Internet and Mobile Phones
2.Multi-module PCBs with 0.2 to 3.0mm Thickness
3.competitive price

Our Service

PCB Clone, PCB Assembly, SMT PCBA Copy:

We can purchase all the components for you for Turnkey service.

We can recommend alternate components to help you reduce the costs.

1. PCB File with Parts List provided by customers.

2. PCB boards made, parts purchased by us.

3. PCB boards with parts assembled by us.

4. Testing PCBA for customers (If customer tells us the testing way).

* We can copy PCB or PCBA if customers send samples to us.

Detial information of the product.

ITEMS	CAPACITY
Layer	2-20
Base Material for PCB	FR4.AL.CEM-1.CEM-3.high TG180
Innerlayer line width/space	4mil
Min innerlayer pad	5min
Min core thickness	4min
Thickness of finished panel	0.2-4.0mm
Surface treating process of innerlayer	Black/brown oxide
Min drilling diameter	0.2mm
PHT hole copper thickness	0.4-2mil
Outer layer line width/space	4mil
Type of soler mask	Taiyo PSR2000,NSR-9000 and others
Thickness of soler mask	Line end	0.4-1.2mil
	Line comer	≥0.2mil
	On substrate	≤finished cu thickness+1.2mil
Surface treatment	HAL/HAL lead free,gold finger,OSP,slive,gold
Other process	PEEABLE, AD
Soler mask color	Red.blue.yellow.black.white.etc.
Test	E-Testing
Certification	ISO9000,CE,ROHS
Lead time	For sample:1-7 days
	For opening mould:3-7 days
	For mass production:5-10 days
Packing	Inner packing: vacuum packing
	Outside packing: Standard carton packing
